Product Details
Place of Origin: China
Brand Name: FENGCHI
Certification: CE, ISO9001
Model Number: HD-2800
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: TBA
Packaging Details: Seaworthy
Delivery Time: around 20 days(7 days for urgent order)
Payment Terms: T/T, D/P, L/C
Supply Ability: Monthly 50 flute laminators + 20 stackers

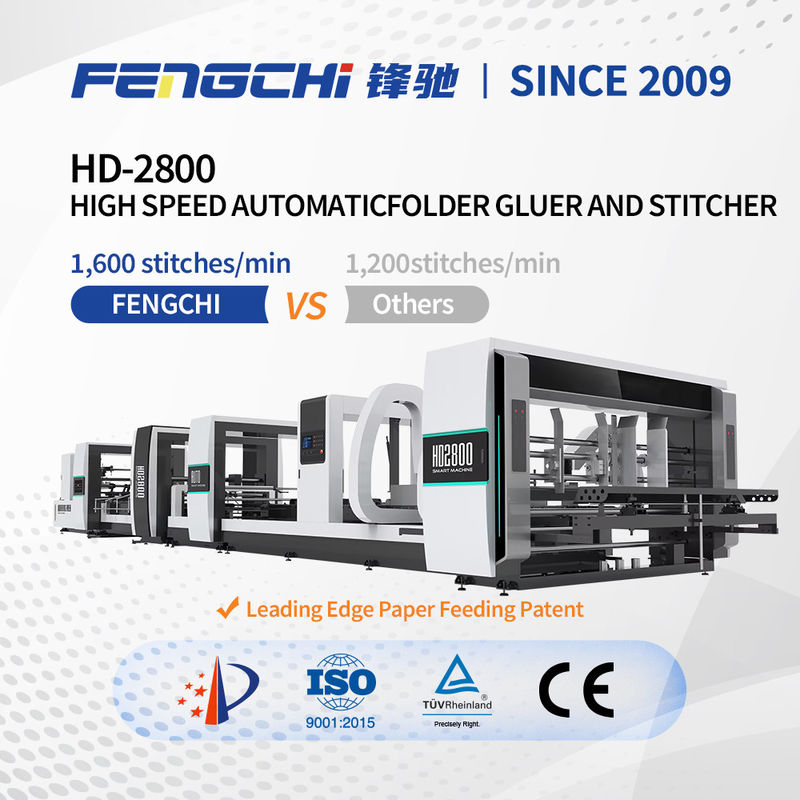

HIGH SPEED AUTOMATIC
FOLDER GLUER AND STITCHER
The key feature of the machine is the full computer control, easy operation, stable quality, manpower saving.
All-in-one machine, separate folder gluer, stitching, folder gluer and stitching. Single stitching, double stitching can be switched freely.
Job-change around 3-5 mins, with order memory function
Suitable for A/B/C/AB flute, 3ply, 5ply, mono cardboard
Automatic paper folding, correction,stitching , gluing, counting and stacking.
Using swin head with small power consumption, faster speed, more stable, effectively improve the quality of nail box.
Using the paper correction function to make secondary compensation and correct the positioning, eliminate the scissors mouth.
The automatic stitch feeding can realize stitch detection and stitch breaking.
One-key conversion between stitching and gluing function
|
PRODUCT HIGHLIGHTS |
||||||||||||||||||||||||||||||||
| Feeding Part | Feeding Part |
Feeding Part | ||||||||||||||||||||||||||||||
|
1.With the retention frame pneumatic flap, more stable, higher accuracy. 2.Siegling high wear-resistance suction belt, can control the air volume, Ensure complete paper adsorption, ensure stable paper transmission, accurate positioning. 3.Split air suction unit, effectively reduce the after-sales maintenance cost and time. |
device to ensure the stability, good forming effect and smooth packing. |
effectively solves the problem of thick cardboard blasting in the process of stitching. 4.The split transmission shaft can be adjusted separately and tightened to ensure that the belt pressure is consistent, the paper is stable and effectively avoid the shaft phenomenon. |
||||||||||||||||||||||||||||||
| Folding Part |
Small Arm |
Stitching Part |
||||||||||||||||||||||||||||||
|
|
4.Reciprocating straight line beat correction, high accuracy, stable operation. 5.The forward -leaning arched beam is conducive for carton connection and transmission. 6.With the sunken belt, greatly strengthen the molding accuracy and smoothness of the carton. |
1.Using the swing stitching head, small power consumption, faster speed, more stable, effectively improved the quality of nail box. 2. Integrated connection mode to ensure the accurate distance, installation and maintenance and easy to operate. 3. Customized alloy material to ensure that the knife is used 6 million times without wear. 4. The heat dissipation properties and mechanical properties of seven series alloy aluminum are higher than those of ordinary materials. |
||||||||||||||||||||||||||||||
|
Model: HD-2800 HD-3600 |
||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||
