Product Details
Place of Origin: China
Brand Name: FENGCHI
Certification: CE, ISO9001
Model Number: Ty-1460
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: TBA
Packaging Details: Seaworthy
Delivery Time: around 20 days(7 days for urgent order)
Payment Terms: T/T, D/P, L/C
Supply Ability: Monthly 50 flute laminators + 20 stackers

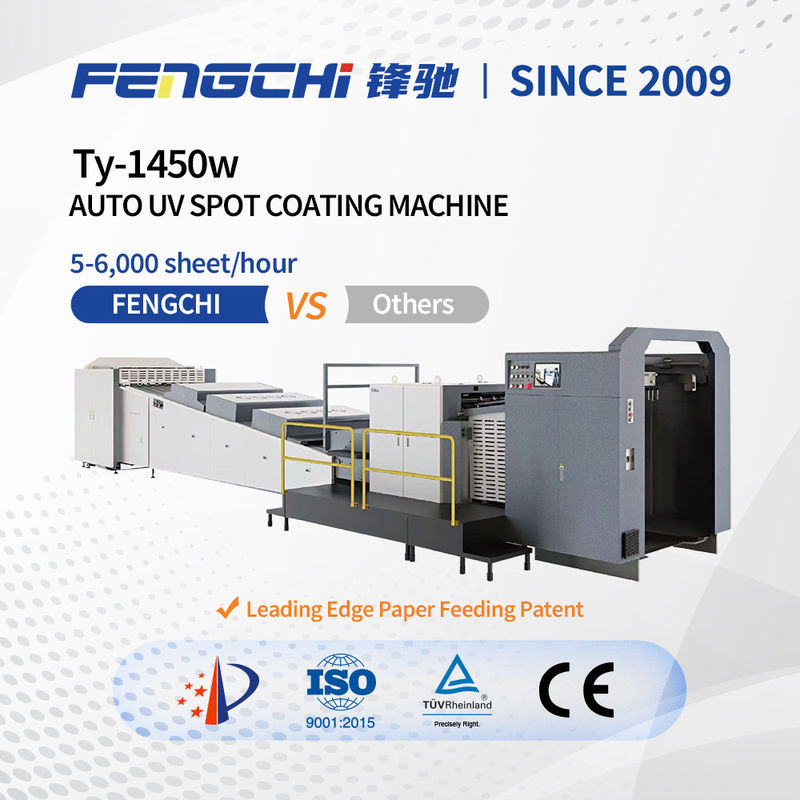

Auto UV Spot Coating Machine
Automatic paper feeder
High reliability paper feed adopts linear slide rail composition, fast feeding speed, no matter the size of the paper can be closely delivered.
Sensitive electromechanical double - tension side detector, when more than one sheet of paper through, feeding automatically stops.
Maximum load height 1150mm.
Front gauge, pull gauge accurate positioning. Front gauge and pull gauge can be easily and quickly adjusted.
The latest shaft less drive system is easy to use.
Paper delivery embossing department
Paper delivery structure, maximum mechanical speed of 8000 pieces/hour.
Embossing and coating roller adopts precision grinding treatment, by dynamic balance adjustment, accurate size.
Blanket cylinder has quickly clamp blanket and plate substrate, plate change, plate fast and convenient
Multi-functional coater
Equipped with ceramic anilox roller with circulating varnish supply and enclosed chamber (doctor blade) system
UV. drying and curing equipment
UV. The drying equipment adopts three UV lights , which can quickly cure and dry UV varnish.
Adopt teflon conveying belt to make paper drying, the whole distance bottom air suction, low working noise, high speed, high efficient curing
effect and simple maintenance.
Equipped with full /half light conversion, UV leakage protection device to ensure the safety of operating staff.
Built-in automatic temperature control, electronic abnormal jump with cooling exhaust equipment, to prevent the machine temperature from being over high.
Two groups of IR drying, each group of 12 pcs of 1kw light groups staggered arrangement.
The heat of the auxiliary blower is even.
Equipped with the latest electronic frequency conversion power ultraviolet system
Auto Delivery Unit
With automatic paper loading platform device, the maximum load height of 1200mm, photoelectric induction pneumatic bilateral paper leveler.
Thin paper guide device ensures smooth and neat paper delivering.
Electric control system
The machine is driven by frequency conversion, PLC program controller , working has high stability and low failure rate.
The appearance is subject to continuous improvement without prior notice
